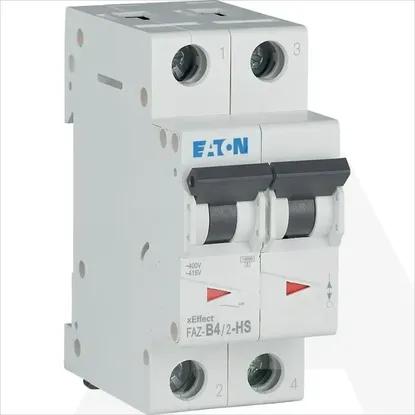

FAZ-B4/2-HS
Code: 1745943
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Number of protected poles2
Rated current4A
Built-in depth70.5mm
Number of poles (total)2
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Voltage typeAC
Release characteristicB
Rated insulation voltage Ui440V
Current limiting class3
Power loss3W
Rated impulse withstand voltage Uimp4kV
Frequency50 - 60Hz
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Width in number of modular spacings2
Over voltage category3
Connectable conductor cross section multi-wired1 - 25mm²
Explosion-proofNo
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section solid-core1 - 25mm²
Degree of protection (IP)IP20
