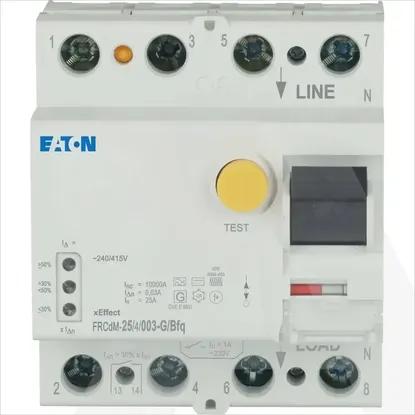

FRCdM-25/4/003-G/Bfq
Code: 1745947
Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Rated fault current0.03mA
Number of poles4
Selective protectionNo
Rated voltage415V
Short-circuit breaking capacity (Icw)10kA
Rated insulation voltage Ui440V
Rated current25A
Additional equipment possibleYes
Leakage current typeB
Short-time delayed trippingYes
Mounting methodDIN rail
Frequency50 Hz
Ambient temperature during operating-25 - 60°C
Width in number of modular spacings4
Pollution degree2
Degree of protection (IP)IP20
Surge current capacity3kA
Built-in depth70.5mm
Voltage typeAC
Connectable conductor cross section solid-core1.5 - 35mm²
With interlocking deviceYes
RAL-number (similar)7035
Explosion-proofNo
Connectable conductor cross section multi-wired1.5 - 16mm²
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
