Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Built-in depth70.5mm
Short-time delayed trippingYes
Degree of protection (IP)IP20
Selective protectionNo
Mounting methodDIN rail
Pollution degree2
Connectable conductor cross section solid-core1.5 - 35mm²
Explosion-proofNo
Rated insulation voltage Ui440V
Width in number of modular spacings4
Short-circuit breaking capacity (Icw)10kA
Surge current capacity3kA
RAL-number (similar)7035
Voltage typeAC
Frequency50 Hz
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired1.5 - 16mm²
With interlocking deviceYes
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Rated current40A
Rated voltage415V
Number of poles4
Rated fault current0.03mA
Leakage current typeB
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

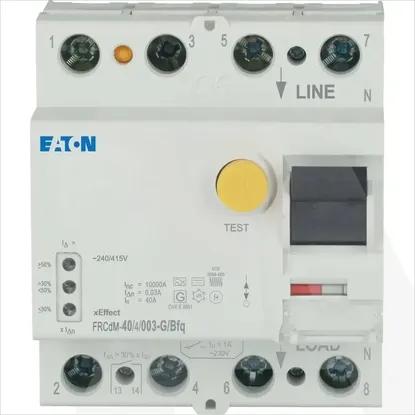

FRCdM-40/4/003-G/Bfq
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Built-in depth
70.5mm
Short-time delayed tripping
Degree of protection (IP)
IP20
Selective protection
Mounting method
DIN rail
Pollution degree
2
Connectable conductor cross section solid-core
1.5 .. 35mm²
Explosion-proof
Rated insulation voltage Ui
440V
Width in number of modular spacings
4
Short-circuit breaking capacity (Icw)
10kA
Surge current capacity
3kA
RAL-number (similar)
7035
Voltage type
AC
Frequency
50 Hz
Ambient temperature during operating
-25 .. 60°C
Connectable conductor cross section multi-wired
1.5 .. 16mm²
With interlocking device
Rated impulse withstand voltage Uimp
4kV
Additional equipment possible
Rated current
40A
Rated voltage
415V
Number of poles
4
Rated fault current
0.03mA
Leakage current type
B
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
