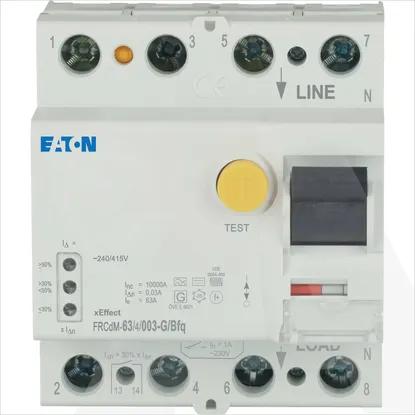

FRCdM-63/4/003-G/Bfq
Code: 1745949
Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Number of poles4
Rated current63A
Rated voltage415V
Rated fault current0.03mA
Selective protectionNo
Leakage current typeB
Mounting methodDIN rail
Rated insulation voltage Ui440V
Frequency50 Hz
Short-time delayed trippingYes
Short-circuit breaking capacity (Icw)10kA
Ambient temperature during operating-25 - 60°C
Additional equipment possibleYes
Surge current capacity3kA
Voltage typeAC
With interlocking deviceYes
Connectable conductor cross section multi-wired1.5 - 16mm²
Width in number of modular spacings4
Degree of protection (IP)IP20
Built-in depth70.5mm
Connectable conductor cross section solid-core1.5 - 35mm²
RAL-number (similar)7035
Pollution degree2
Explosion-proofNo
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
FRCdM-63/4/003-G/Bfq
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Number of poles
4
Rated current
63A
Rated voltage
415V
Rated fault current
0.03mA
Selective protection
Leakage current type
B
Mounting method
DIN rail
Rated insulation voltage Ui
440V
Frequency
50 Hz
Short-time delayed tripping
Short-circuit breaking capacity (Icw)
10kA
Ambient temperature during operating
-25 .. 60°C
Additional equipment possible
Surge current capacity
3kA
Voltage type
AC
With interlocking device
Connectable conductor cross section multi-wired
1.5 .. 16mm²
Width in number of modular spacings
4
Degree of protection (IP)
IP20
Built-in depth
70.5mm
Connectable conductor cross section solid-core
1.5 .. 35mm²
RAL-number (similar)
7035
Pollution degree
2
Explosion-proof
Rated impulse withstand voltage Uimp
4kV
