Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Number of poles2
Mounting methodDIN rail
Voltage typeAC
Rated voltage240V
Rated insulation voltage Ui440V
Built-in depth70.5mm
Short-circuit breaking capacity (Icw)10kA
Leakage current typeOther
Rated current40A
Surge current capacity5kA
Pollution degree2
Selective protectionYes
Connectable conductor cross section solid-core1.5 - 35mm²
Ambient temperature during operating-25 - 40°C
Width in number of modular spacings2
Short-time delayed trippingNo
Frequency50/60 Hz
Degree of protection (IP)IP20
With interlocking deviceYes
RAL-number (similar)7035
Explosion-proofNo
Rated fault current0.1mA
Connectable conductor cross section multi-wired1.5 - 16mm²
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

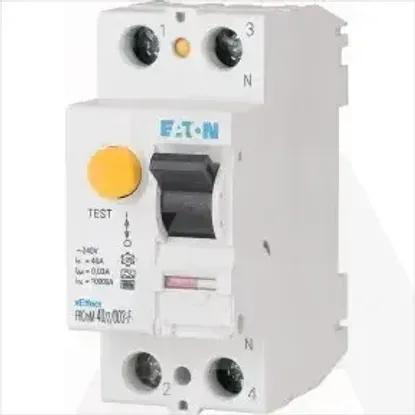

FRCmM-40/2/01-S/F
