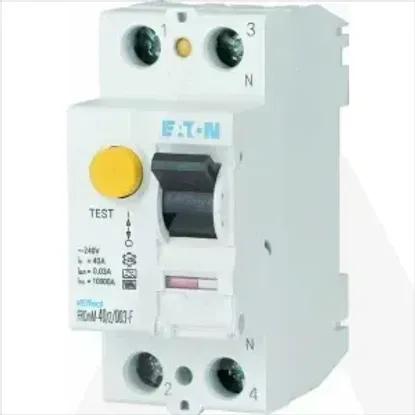

FRCmM-80/2/003-G/F
Code: 1745987
Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Rated voltage240V
Rated current80A
Number of poles2
Rated impulse withstand voltage Uimp4kV
Selective protectionNo
Surge current capacity3kA
Mounting methodDIN rail
Short-circuit breaking capacity (Icw)10kA
Rated fault current0.03mA
Rated insulation voltage Ui440V
Short-time delayed trippingYes
Frequency50/60 Hz
Additional equipment possibleYes
Width in number of modular spacings2
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired1.5 - 16mm²
Leakage current typeOther
Voltage typeAC
With interlocking deviceYes
Pollution degree2
Ambient temperature during operating-25 - 40°C
Connectable conductor cross section solid-core1.5 - 35mm²
RAL-number (similar)7035
Built-in depth70.5mm
Explosion-proofNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
