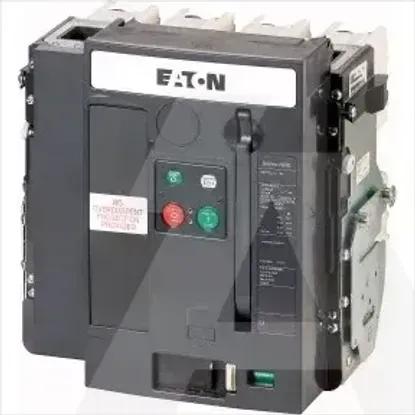

INX16B4-12W-1
Code: 1746015
ManufacturerEaton
Catalog number183652
TypeINX16B4-12W-1
CategorySwitch disconnector
EAN code4015081793884
Details
- •Power switch disconnector, withdrawable, 4pole,
- •Low-voltage industrial components
- •Switch disconnector
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq88kA
Rated short-time withstand current lcw42kA
Number of switches-
Type of control elementPush button
Type of electrical connection of main circuitRail connection
Version as main switchYes
Number of auxiliary contacts as change-over contact2
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V0kW
Motor drive integratedNo
Degree of protection (IP), front sideIP31
Number of auxiliary contacts as normally closed contact0
Version as safety switchNo
Version as maintenance-/service switchNo
InterlockableYes
Colour control elementGreen
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Version as reversing switchNo
Voltage release optionalYes
Suitable for intermediate mountingNo
Motor drive optionalYes
Rated permanent current at AC-23, 400 V-A
Rated permanent current at AC-21, 400 V0A
Switching power at 400 V0kW
Device constructionBuilt-in device slide-in technique (withdrawable)
Rated permanent current Iu1250A
Number of poles4
Max. rated operation voltage Ue AC690V
