Details
- •Low-voltage industrial components

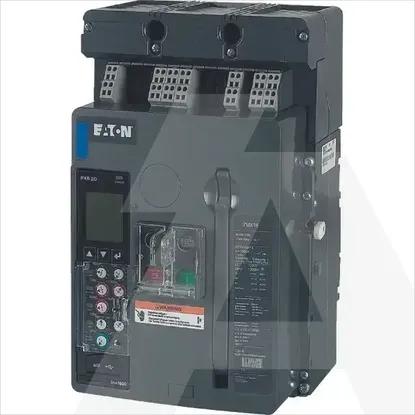

- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu1000A
Overload release current setting500 - 1000A
With switched-off indicatorYes
Position of connection for main current circuitBack side
Motor drive integratedNo
Number of poles3
Adjustment range short-term delayed short-circuit release2000 - 10000A
Adjustment range undelayed short-circuit release2000 - 12000A
Type of control elementPush button
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitRail connection
Number of auxiliary contacts as change-over contact2
Degree of protection (IP)IP31
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz65kA
With under voltage releaseNo
Integrated earth fault protectionNo
Motor drive optionalYes
Suitable for DIN rail (top hat rail) mountingNo
Device constructionBuilt-in device fixed built-in technique
Complete device with protection unitYes
DIN rail (top hat rail) mounting optionalNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
IZMX16H3-V10F-1
