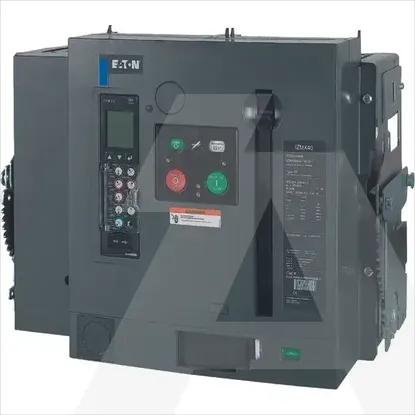

Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu4000A
With under voltage releaseNo
Overload release current setting2000 - 4000A
Rated voltage690 - 690V
Suitable for DIN rail (top hat rail) mountingNo
Position of connection for main current circuitBack side
Number of poles4
Device constructionBuilt-in device slide-in technique (withdrawable)
With switched-off indicatorYes
Adjustment range undelayed short-circuit release8000 - 48000A
Motor drive integratedNo
Complete device with protection unitYes
Motor drive optionalYes
Type of electrical connection of main circuitRail connection
Integrated earth fault protectionNo
Degree of protection (IP)IP31
Number of auxiliary contacts as change-over contact2
DIN rail (top hat rail) mounting optionalNo
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz105kA
Type of control elementPush button
Adjustment range short-term delayed short-circuit release8000 - 40000A
