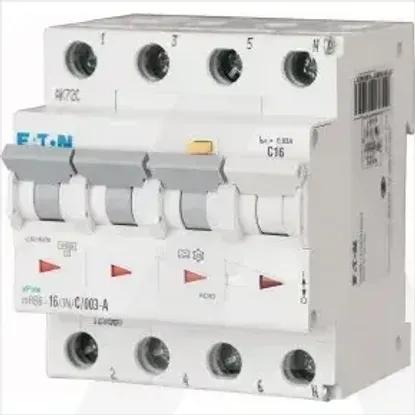

Details

  • •Circuit breakers and fuses
  • •Earth leakage circuit breaker
  • •1 KOM
  • •EATON

Technical specifications

Release characteristicC
Voltage typeAC
Rated insulation voltage Ui500V
Built-in depth70mm
Rated voltage400V
Surge current capacity0.25kA
Degree of protection (IP)IP20
Current limiting class3
Pollution degree2
Anti-nuisance tripping versionNo
Over voltage category3
Connectable conductor cross section multi-wired1 - 25mm²
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 40°C
Frequency50 Hz
With interlocking deviceNo
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity according to EN 610096kA
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Width in number of modular spacings4
Rated short-circuit breaking capacity according to IEC 60947-20kA
Number of protected poles4
Concurrently switching neutral conductorYes
Rated current6A
Rated fault current0.03A
Leakage current typeA
Number of poles (total)4
