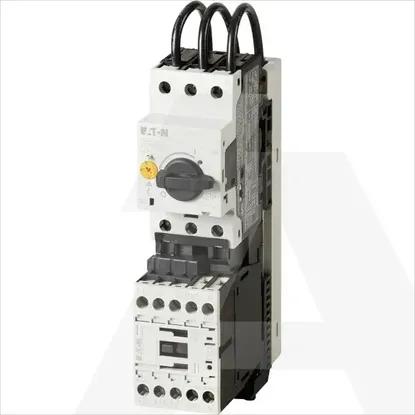

Main Product Image

MSC-DM-0,4-M7(24VDC)/MSFA

Code: 1746800

ManufacturerRAZNO
Catalog number191103
Type
EAN code4015081916016

Details

  • Low-voltage industrial components
  • Motor starter/motor starter combination
  • 1 KOM
  • EATON

Technical specifications

Type of motor starter

Direct online starter (DOL)

With short-circuit release

Yes

Rated control supply voltage Us at AC 60HZ

0 - 0V

Rated control supply voltage Us at DC

24 - 24V

Rated conditional short-circuit current, type 1, 480 Y/277 V

0A

Voltage type for actuating

DC

Rated control supply voltage Us at AC 50HZ

0 - 0V

Rated operation power at AC-3, 230 V, 3-phase

0.06kW

Rated operation power at AC-3, 400 V

0.09kW

Rated operation current at AC-3, 400 V

0.4A

Overload release current setting

0.25 - 0.4A

Rated power, 575 V, 60 Hz, 3-phase

0kW

Rated operation current Ie

0.31A

Rated conditional short-circuit current, type 2, 230 V

50000A

Number of auxiliary contacts as normally closed contact

0

Power consumption

2.6W

Number of auxiliary contacts as normally open contact

1

Rated power, 460 V, 60 Hz, 3-phase

0kW

Rated conditional short-circuit current, type 2, 400 V

50000A

Ambient temperature, upper operating limit

55°C

Rated conditional short-circuit current, type 1, 600 Y/347 V

0A

Temperature compensated overload protection

Yes

Type of electrical connection for auxiliary- and control current circuit

Screw connection

Release class

CLASS 10 A

Rail mounting possible

No

Coordination class according to IEC 60947-4-3

Class 2

Suitable for emergency stop

No

With transformer

No

Number of command positions

0

Number of indicator lights

0

Degree of protection (IP)

IP20

External reset possible

No

With fuse

No

Type of electrical connection of main circuit

Screw connection

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Width

45mm

Height

180mm

Depth

115mm

Supporting protocol for TCP/IP

No

Degree of protection (NEMA)

Other

Supporting protocol for PROFIBUS

No

Supporting protocol for INTERBUS

No

Supporting protocol for CAN

No

Supporting protocol for ASI

No

Supporting protocol for Data-Highway

No

Supporting protocol for SUCONET

No

Supporting protocol for DeviceNet

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for Modbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for SERCOS

No

Supporting protocol for PROFINET CBA

No
