Details
- •Low-voltage industrial components
- •Motor starter/motor starter combination
- •1 KOM
- •EATON
Technical specifications
With transformerNo
Power consumption2.6W
Width45mm
Overload release current setting6.3 - 10A
Supporting protocol for PROFIBUSNo
Supporting protocol for LONNo
Supporting protocol for ModbusNo
Number of auxiliary contacts as normally closed contact0
Height180mm
Rated operation current Ie8.5A
Number of indicator lights0
Supporting protocol for INTERBUSNo
Suitable for emergency stopNo
Rated operation power at AC-3, 400 V4kW
Supporting protocol for CANNo
Number of auxiliary contacts as normally open contact1
Supporting protocol for ASINo
Supporting protocol for TCP/IPNo
Number of command positions0
Supporting protocol for SUCONETNo
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Depth115mm
Supporting protocol for other bus systemsNo
Rated control supply voltage Us at DC24 - 24V
Rated control supply voltage Us at AC 50HZ0 - 0V
Rail mounting possibleNo
Release classCLASS 10 A
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
External reset possibleNo
Rated control supply voltage Us at AC 60HZ0 - 0V
With short-circuit releaseYes
Degree of protection (IP)IP20
Supporting protocol for EtherNet/IPNo
Supporting protocol for Foundation FieldbusNo
With fuseNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IONo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFIsafeNo
Type of electrical connection of main circuitScrew connection
Supporting protocol for SafetyBUS pNo
Supporting protocol for DeviceNet SafetyNo
Type of electrical connection for auxiliary- and control current circuitScrew connection
Type of motor starterDirect online starter (DOL)
Rated operation power at AC-3, 230 V, 3-phase2.2kW
Voltage type for actuatingDC
Rated power, 460 V, 60 Hz, 3-phase0kW
Temperature compensated overload protectionYes
Rated operation current at AC-3, 400 V9A
Ambient temperature, upper operating limit55°C
Degree of protection (NEMA)Other
Rated conditional short-circuit current, type 1, 480 Y/277 V0A
Coordination class according to IEC 60947-4-3Class 1
Rated conditional short-circuit current, type 2, 230 V0A
Rated power, 575 V, 60 Hz, 3-phase0kW
Rated conditional short-circuit current, type 2, 400 V100A
Rated conditional short-circuit current, type 1, 600 Y/347 V0A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

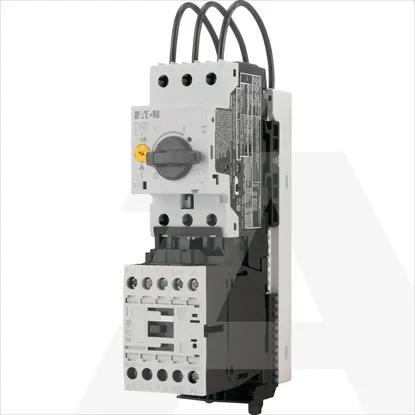

MSC-DM-10-M9(24VDC)/MSFA
