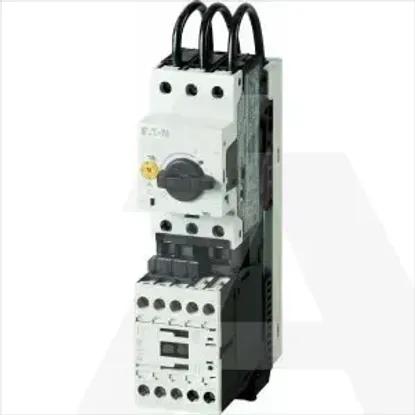

Main Product Image

MSC-DM-12-M12(24VDC)/MSFA

Code: 1746810

ManufacturerRAZNO
Catalog number191112
Type
EAN code4015081916108

Details

  • Low-voltage industrial components
  • Motor starter/motor starter combination
  • 1 KOM
  • EATON

Technical specifications

Rated control supply voltage Us at AC 50HZ

0 - 0V

With short-circuit release

Yes

Type of motor starter

Direct online starter (DOL)

Rated control supply voltage Us at AC 60HZ

0 - 0V

Rated control supply voltage Us at DC

24 - 24V

Rated operation power at AC-3, 230 V, 3-phase

3kW

Rated power, 460 V, 60 Hz, 3-phase

0kW

Rated operation current Ie

11.3A

Voltage type for actuating

DC

Rated operation power at AC-3, 400 V

5.5kW

Rated power, 575 V, 60 Hz, 3-phase

0kW

Rated conditional short-circuit current, type 1, 480 Y/277 V

0A

Rated conditional short-circuit current, type 1, 600 Y/347 V

0A

Rated operation current at AC-3, 400 V

12A

Rated conditional short-circuit current, type 2, 400 V

100A

Rated conditional short-circuit current, type 2, 230 V

0A

Overload release current setting

8 - 12A

Power consumption

2.6W

Temperature compensated overload protection

Yes

Number of auxiliary contacts as normally open contact

1

Ambient temperature, upper operating limit

55°C

Number of auxiliary contacts as normally closed contact

0

Type of electrical connection for auxiliary- and control current circuit

Screw connection

Release class

CLASS 10 A

Type of electrical connection of main circuit

Screw connection

With transformer

No

Rail mounting possible

No

Number of indicator lights

0

Number of command positions

0

External reset possible

No

Suitable for emergency stop

No

Coordination class according to IEC 60947-4-3

Class 1

Degree of protection (IP)

IP20

Degree of protection (NEMA)

Other

Supporting protocol for INTERBUS

No

Supporting protocol for Modbus

No

Supporting protocol for PROFIBUS

No

Supporting protocol for Data-Highway

No

Supporting protocol for TCP/IP

No

With fuse

No

Supporting protocol for CAN

No

Supporting protocol for ASI

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Width

45mm

Height

180mm

Depth

115mm

Supporting protocol for DeviceNet

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

From same serie

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
