Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
With switched-off indicatorNo
Number of auxiliary contacts as change-over contact0
Overload release current setting100 - 100A
Rated permanent current Iu100A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz25kA
Motor drive integratedNo
Position of connection for main current circuitFront side
Adjustment range undelayed short-circuit release600 - 1000A
Type of electrical connection of main circuitFrame clamp
Degree of protection (IP)IP20
Adjustment range short-term delayed short-circuit release0 - 0A
Suitable for DIN rail (top hat rail) mountingNo
Number of poles3
Rated voltage440 - 440V
Type of control elementRocker lever
Complete device with protection unitYes
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Motor drive optionalYes
DIN rail (top hat rail) mounting optionalYes
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

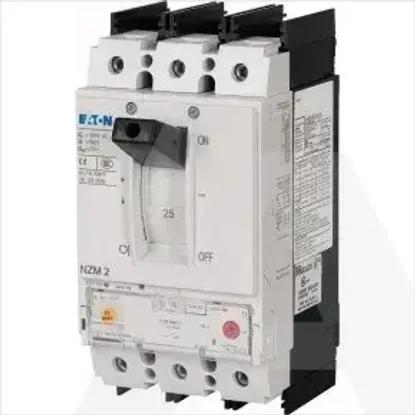

NZMB2-AF100-BT-NA
