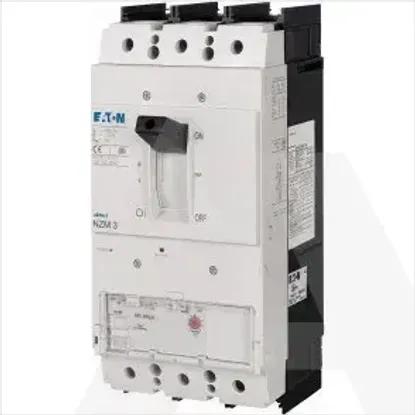

Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
With integrated under voltage releaseNo
Rated permanent current Iu600A
Number of poles3
Number of auxiliary contacts as change-over contact0
Overload release current setting600 - 600A
Rated voltage690 - 690V
Degree of protection (IP)IP20
Position of connection for main current circuitFront side
Type of control elementRocker lever
With switched-off indicatorNo
Type of electrical connection of main circuitScrew connection
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz150kA
Motor drive integratedNo
Complete device with protection unitYes
Adjustment range short-term delayed short-circuit release0 - 0A
Suitable for DIN rail (top hat rail) mountingNo
Integrated earth fault protectionNo
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalNo
Adjustment range undelayed short-circuit release1200 - 4800A
Motor drive optionalYes
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
NZMH3-AEF600-NA
