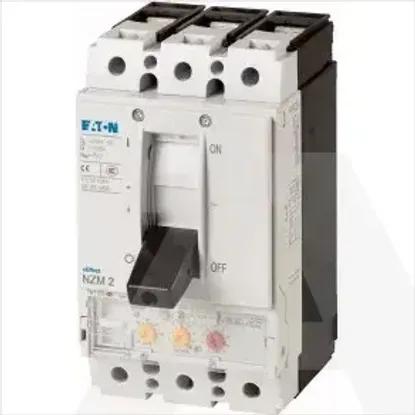

NZMN2-ME140-BT-NA
Code: 1747363
ManufacturerEaton
Catalog number142422
TypeNZMN2-ME140-BT-NA
CategoryMotor protection circuit-breaker
EAN code4015081391486
Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
With integrated auxiliary switchNo
With integrated under voltage releaseNo
Height195mm
Rated operating voltage690 - 690V
Depth149mm
Degree of protection (IP)IP20
Width105mm
With thermal protectionYes
Type of electrical connection of main circuitOther
Type of control elementRocker lever
Device constructionBuilt-in device fixed built-in technique
Switch off techniqueElectronic
Phase failure sensitiveYes
Rated operation power at AC-3, 230 V45kW
Adjustment range undelayed short-circuit release280 - 1960A
Rated operation power at AC-3, 400 V75kW
Rated permanent current Iu140A
Number of poles3
Overload release current setting70 - 140A
Rated short-circuit breaking capacity lcu at 400 V, AC50kA
