Details
- •Low-voltage industrial components

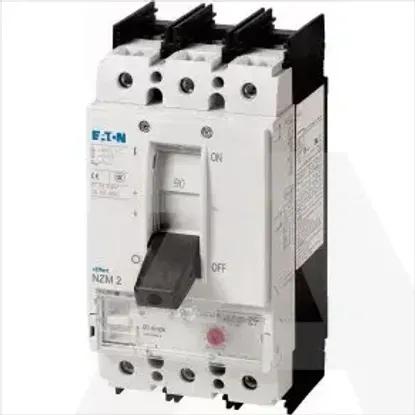

- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Height195mm
With integrated under voltage releaseNo
Width105mm
With integrated auxiliary switchNo
Depth149mm
Rated operating voltage690 - 690V
Switch off techniqueElectronic
Degree of protection (IP)IP20
Type of electrical connection of main circuitScrew connection
Type of control elementRocker lever
Rated operation power at AC-3, 230 V22kW
With thermal protectionNo
Phase failure sensitiveNo
Adjustment range undelayed short-circuit release180 - 1260A
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-3, 400 V45kW
Rated permanent current Iu90A
Number of poles3
Overload release current setting0 - 0A
Rated short-circuit breaking capacity lcu at 400 V, AC35kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
NZMN2-SE90-CNA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Motor protection circuit-breaker
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Height
195mm
With integrated under voltage release
Width
105mm
With integrated auxiliary switch
Depth
149mm
Rated operating voltage
690 .. 690V
Switch off technique
Electronic
Degree of protection (IP)
IP20
Type of electrical connection of main circuit
Screw connection
Type of control element
Rocker lever
Rated operation power at AC-3, 230 V
22kW
With thermal protection
Phase failure sensitive
Adjustment range undelayed short-circuit release
180 .. 1260A
Device construction
Built-in device fixed built-in technique
Rated operation power at AC-3, 400 V
45kW
Rated permanent current Iu
90A
Number of poles
3
Overload release current setting
0 .. 0A
Rated short-circuit breaking capacity lcu at 400 V, AC
35kA
