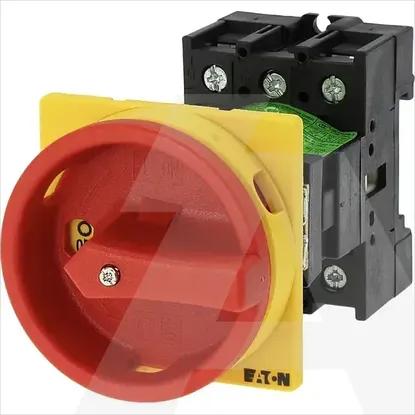

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
InterlockableYes
Depth90mm
Number of auxiliary contacts as normally open contact0
Width54mm
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq80kA
Rated permanent current Iu32A
Motor drive integratedNo
Number of poles3
Number of switches1
Type of electrical connection of main circuitScrew connection
Version as maintenance-/service switchYes
Degree of protection (IP), front sideIP65
Rated operation power at AC-3, 400 V13kW
Rated short-time withstand current lcw0.64kA
Version as main switchYes
Version as safety switchNo
Rated operation power at AC-23, 400 V15kW
Height70mm
Type of control elementDoor coupling rotary drive
Version as emergency stop installationYes
Number of auxiliary contacts as normally closed contact0
Colour control elementRed
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Voltage release optionalNo
Suitable for distribution board installationNo
Rated permanent current at AC-21, 400 V32A
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
With pre-assembled cablingNo
Suitable for floor mountingNo
Rated permanent current at AC-23, 400 V32A
Switching power at 400 V15kW
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Degree of protection (NEMA)1
