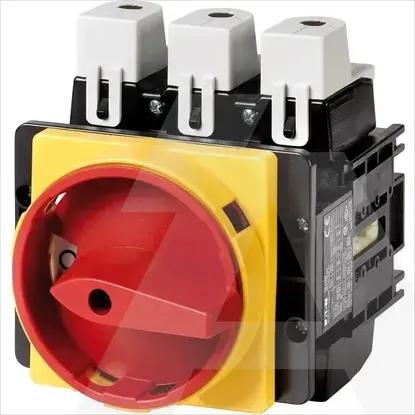

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Max. rated operation voltage Ue AC690V
Rated operating voltage690 - 690V
Version as safety switchNo
Number of switches1
Rated permanent current at AC-23, 400 V125A
Version as reversing switchNo
Rated operation power at AC-3, 400 V37kW
Rated permanent current Iu125A
Conditioned rated short-circuit current Iq30kA
Rated short-time withstand current lcw2.5kA
Rated operation power at AC-23, 400 V45kW
Version as emergency stop installationYes
Rated permanent current at AC-21, 400 V125A
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Version as main switchYes
Number of poles3
Switching power at 400 V45kW
Number of auxiliary contacts as normally open contact1
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting centreNo
Motor drive integratedNo
Voltage release optionalNo
Suitable for floor mountingNo
Number of auxiliary contacts as normally closed contact0
Suitable for front mounting 4-holeYes
Motor drive optionalNo
Suitable for distribution board installationNo
Degree of protection (NEMA)12
Height150mm
Colour control elementRed
Degree of protection (IP), front sideIP65
Type of control elementDoor coupling rotary drive
Depth115mm
Type of electrical connection of main circuitFrame clamp
InterlockableYes
With pre-assembled cablingNo
Suitable for intermediate mountingNo
Width130mm
