Details
- •Low-voltage industrial components

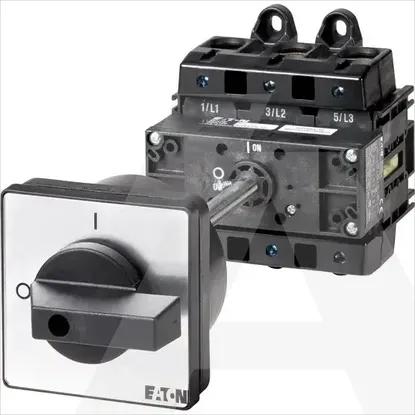

- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchNo
Version as main switchNo
Version as reversing switchNo
Version as emergency stop installationNo
Version as safety switchNo
Rated operation power at AC-3, 400 V37kW
Rated permanent current at AC-23, 400 V125A
Rated permanent current at AC-21, 400 V125A
Number of switches1
Rated permanent current Iu125A
Rated operation power at AC-23, 400 V45kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Number of poles3
Switching power at 400 V45kW
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC690V
Motor drive integratedNo
Suitable for floor mountingNo
Conditioned rated short-circuit current Iq30kA
Motor drive optionalNo
Rated short-time withstand current lcw2.5kA
Rated operating voltage690 - 690V
Suitable for distribution board installationNo
Suitable for intermediate mountingYes
Suitable for front mounting centreNo
With pre-assembled cablingNo
Type of control elementShort thumb-grip
Degree of protection (NEMA)12
Width130mm
Type of electrical connection of main circuitFrame clamp
Suitable for front mounting 4-holeNo
Degree of protection (IP), front sideIP65
Colour control elementBlack
Height150mm
InterlockableNo
Depth115mm
