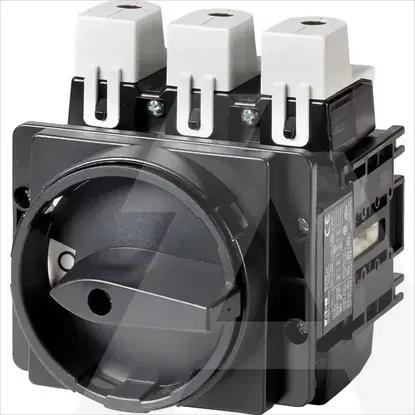

P5-160/EA/SVB-SW/N
Code: 1747466
ManufacturerEaton
Catalog number280927
TypeP5-160/EA/SVB-SW/N
CategorySwitch disconnector
EAN code4015082809270
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width130mm
Height150mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V45kW
Depth150mm
Number of auxiliary contacts as normally open contact0
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq30kA
Number of switches1
Type of electrical connection of main circuitFrame clamp
Rated operating voltage690 - 690V
InterlockableYes
Version as maintenance-/service switchYes
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Version as safety switchNo
Degree of protection (IP), front sideIP65
Type of control elementDoor coupling rotary drive
Version as main switchYes
Rated operation power at AC-23, 400 V55kW
Voltage release optionalNo
Colour control elementBlack
Suitable for front mounting 4-holeYes
Rated short-time withstand current lcw3kA
Suitable for floor mountingNo
Motor drive optionalNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Suitable for front mounting centreNo
With pre-assembled cablingNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V160A
Rated permanent current at AC-21, 400 V160A
Degree of protection (NEMA)12
Switching power at 400 V55kW
Device constructionBuilt-in device fixed built-in technique
Rated permanent current Iu160A
Number of poles4
Max. rated operation voltage Ue AC690V
Related products
