Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width130mm
Type of control elementDoor coupling rotary drive
Depth150mm
Degree of protection (IP), front sideIP65
Height150mm
Number of auxiliary contacts as change-over contact0
InterlockableYes
Number of switches1
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq30kA
Rated operation power at AC-3, 400 V55kW
Motor drive integratedNo
Type of electrical connection of main circuitFrame clamp
Rated permanent current Iu250A
Version as emergency stop installationYes
Rated operating voltage690 - 690V
Number of poles3
Number of auxiliary contacts as normally closed contact0
Version as main switchYes
Switching power at 400 V90kW
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V250A
Colour control elementRed
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V250A
With pre-assembled cablingNo
Device constructionBuilt-in device fixed built-in technique
Version as maintenance-/service switchYes
Version as reversing switchNo
Suitable for floor mountingNo
Motor drive optionalNo
Voltage release optionalNo
Rated short-time withstand current lcw4.6kA
Suitable for intermediate mountingYes
Rated operation power at AC-23, 400 V90kW
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Version as safety switchNo
Suitable for front mounting centreNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

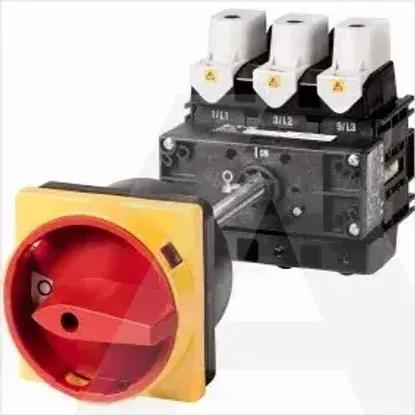

P5-250/V/SVB
