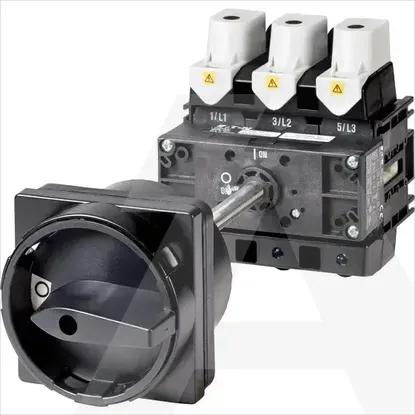

Main Product Image

P5-315/V/SVB-SW

Code: 1747468

ManufacturerEaton
Catalog number280959
TypeP5-315/V/SVB-SW
CategorySwitch disconnector
EAN code4015082809591

Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Width130mm
Rated operation power at AC-3, 400 V75kW
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitFrame clamp
Version as emergency stop installationNo
Motor drive integratedNo
InterlockableYes
Degree of protection (IP), front sideIP65
Version as maintenance-/service switchYes
Number of auxiliary contacts as normally closed contact0
Height150mm
Version as safety switchNo
Colour control elementBlack
Rated operation power at AC-23, 400 V110kW
Number of switches1
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq15kA
Suitable for floor mountingNo
Type of control elementDoor coupling rotary drive
Depth150mm
Rated short-time withstand current lcw5.8kA
Version as main switchYes
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Degree of protection (NEMA)12
Suitable for front mounting centreNo
Motor drive optionalNo
Suitable for intermediate mountingYes
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V110kW
Rated permanent current at AC-21, 400 V315A
With pre-assembled cablingNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V315A
Suitable for distribution board installationNo
Rated permanent current Iu315A
Number of poles3
Max. rated operation voltage Ue AC690V
