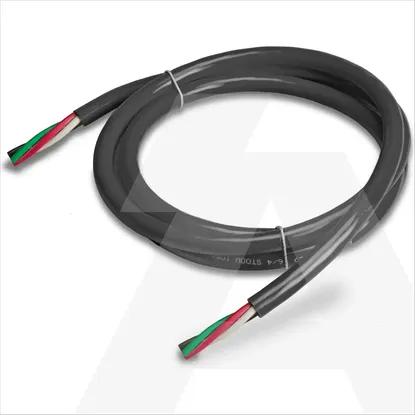

SWD4-100LR4P
Code: 1747517
Details
- •Cables
- •Data and communication cable
- •1 KOM
- •EATON
Technical specifications
Cable typeOther
Conductor surfaceBare
Nominal cross section conductor0.5mm²
Diameter conductor1.5mm
DuplexNo
Conductor materialOther
AWG size20
Conductor categoryClass 2 = stranded
Number of stranding elements26
Specification core insulationOther
Stranding elementPairs
Core identification according to HD 308 S2No
Number of cores4
Core identificationColour
Material core insulationOther
StrandingBundle
Screen over stranding elementFoil
Screen over strandingNone
Radial water blocking cableYes
Longitudinal water blocking cableYes
Approved type of underground installationOther
Suitable for underground installationNo
Protective sheathOther
Colour outer sheathBlack
Material outer sheathPolyvinyl chloride (PVC)
Number of sheath layers0
Material reinforcementOther
Armouring/reinforcementNone
Flame retardant according to IEC 60332-1-2No
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
Specification material outer sheathOther
Flame retardant according to IEC 60332-3-22 (Cat A)No
Cable geometryRound
Flame retardant according to IEC 60332-3-25 (Cat D)No
Low smoke (according to IEC 61034-2)No
Flame retardant according to IEC 60332-3-23 (Cat B)No
Flame retardant according to IEC 60332-3-24 (Cat C)No
Halogen free according to IEC 60754-1No
Permitted cable outer temperature during assembling/handling-25 - 70°C
Permitted cable outer temperature after assembling without vibration-25 - 70°C
CategoryOther
NVP value66.5%
UV resistantYes
Certified for shipboard applicationNo
Suitable as telephone cableNo
Suitable as signalling cableYes
Suitable as computer data cableNo
Drain wireNo
Suitable for use as security alarm cableNo
With rip cordNo
Cable width approx.5.6mm
Cable height approx.307.692mm
Characteristic impedance100Ohm
Nominal voltage U24V
With rodent protectionNo
Compatible with Grade3TV according to XP-C 90-483No
Compatible with Grade2TV according to XP-C 90-483No
Halogen free (according to IEC 60754-2)No
Halogen free according to IEC 60754-3No
Reaction-to-fire class according to EN 13501-6None
Smoke development class according to EN 13501-6None
Euro class flaming droplets/particles according to EN 13501-6None
Euro class acidity according to EN 13501-6None
Circuit integrity according to IEC 60331-23No
Oil resistant (according to EN 60811-404)Yes
Min. permitted bending radius, moving application with forced guidance0mm
Outer diameter approx.11mm
Min. permitted bending radius, moving application/free movement0mm
Min. permitted bending radius, stationary application/permanent installation64mm
