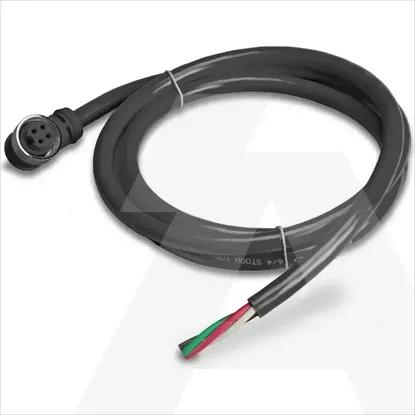

SWD4-1LR4P-2R
Code: 1747522
Details
- •Cables
- •Data and communication cable
- •1 KOM
- •EATON
Technical specifications
Cable typeOther
DuplexNo
Conductor materialOther
Conductor surfaceBare
Nominal cross section conductor0.5mm²
Stranding elementPairs
Core identification according to HD 308 S2No
Screen over stranding elementFoil
Number of cores4
Suitable for underground installationNo
Longitudinal water blocking cableNo
StrandingBundle
Conductor categoryClass 2 = stranded
Specification core insulationOther
Radial water blocking cableYes
Material core insulationOther
Number of stranding elements26
Diameter conductor1.5mm
Core identificationColour
Screen over strandingNone
AWG size20
Material outer sheathPolyvinyl chloride (PVC)
Approved type of underground installationOther
Flame retardant according to IEC 60332-1-2No
Protective sheathOther
Number of sheath layers0
Material reinforcementOther
Specification material outer sheathOther
Armouring/reinforcementNone
Cable geometryRound
Permitted cable outer temperature during assembling/handling-25 - 70°C
Permitted cable outer temperature after assembling without vibration-25 - 70°C
CategoryOther
NVP value66.5%
Certified for shipboard applicationNo
Suitable as telephone cableNo
Suitable as computer data cableNo
Suitable as signalling cableYes
Suitable for use as security alarm cableNo
Drain wireNo
With rip cordNo
Cable height approx.51.282mm
Characteristic impedance100Ohm
Cable width approx.5.6mm
Nominal voltage U24V
Compatible with Grade2TV according to XP-C 90-483No
With rodent protectionNo
Compatible with Grade3TV according to XP-C 90-483No
Halogen free according to IEC 60754-1No
Low smoke (according to IEC 61034-2)No
Flame retardant according to IEC 60332-3-25 (Cat D)No
Smoke development class according to EN 13501-6None
Halogen free (according to IEC 60754-2)No
Halogen free according to IEC 60754-3No
Reaction-to-fire class according to EN 13501-6None
Circuit integrity according to IEC 60331-23No
Oil resistant (according to EN 60811-404)Yes
Euro class flaming droplets/particles according to EN 13501-6None
Outer diameter approx.11mm
Min. permitted bending radius, stationary application/permanent installation64mm
Min. permitted bending radius, moving application with forced guidance0mm
Euro class acidity according to EN 13501-6None
Min. permitted bending radius, moving application/free movement0mm
Colour outer sheathBlack
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
Flame retardant according to IEC 60332-3-22 (Cat A)No
Flame retardant according to IEC 60332-3-24 (Cat C)No
Flame retardant according to IEC 60332-3-23 (Cat B)No
