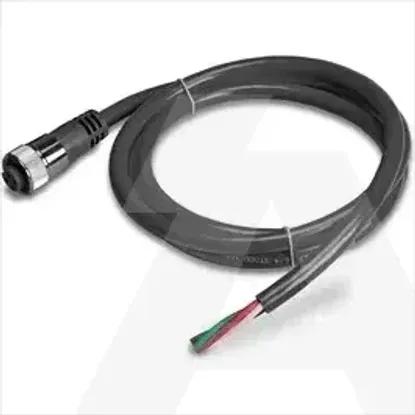

SWD4-20LR4P-2S
Code: 1747527
ManufacturerEaton
Catalog number183217
TypeSWD4-20LR4P-2S
CategoryData and communication cable
EAN code4015081781508
Details
- •Cables
- •Data and communication cable
- •1 KOM
- •EATON
Technical specifications
Material core insulationOther
Core identificationColour
UV resistantNo
Drain wireNo
Nominal voltage U24V
Stranding elementPairs
Diameter conductor1.5mm
Material outer sheathPolyvinyl chloride (PVC)
Screen over stranding elementFoil
Permitted cable outer temperature after assembling without vibration-25 - 70°C
Protective sheathOther
Characteristic impedance100Ohm
Number of stranding elements26
CategoryOther
Conductor categoryClass 2 = stranded
Permitted cable outer temperature during assembling/handling-25 - 70°C
Number of cores4
Screen over strandingNone
Armouring/reinforcementNone
Suitable for underground installationNo
Low smoke (according to IEC 61034-2)No
With rodent protectionNo
StrandingBundle
Longitudinal water blocking cableNo
Oil resistant (according to EN 60811-404)Yes
Outer diameter approx.11mm
Radial water blocking cableYes
Conductor surfaceBare
Halogen free (according to IEC 60754-2)No
Reaction-to-fire class according to EN 13501-6None
NVP value66.5%
Cable height approx.102.564mm
Cable width approx.5.6mm
Smoke development class according to EN 13501-6None
Euro class flaming droplets/particles according to EN 13501-6None
Specification material outer sheathOther
Specification core insulationOther
Cable geometryRound
Euro class acidity according to EN 13501-6None
Material reinforcementOther
Min. permitted bending radius, moving application/free movement0mm
Min. permitted bending radius, stationary application/permanent installation64mm
Min. permitted bending radius, moving application with forced guidance0mm
AWG size20
Flame retardant according to IEC 60332-3-25 (Cat D)No
Flame retardant according to IEC 60332-3-22 (Cat A)No
Flame retardant according to IEC 60332-3-23 (Cat B)No
Flame retardant according to IEC 60332-1-2No
Core identification according to HD 308 S2No
Suitable as telephone cableNo
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
Certified for shipboard applicationNo
Circuit integrity according to IEC 60331-23No
Halogen free according to IEC 60754-3No
Suitable as signalling cableYes
Halogen free according to IEC 60754-1No
Suitable as computer data cableNo
Flame retardant according to IEC 60332-3-24 (Cat C)No
Approved type of underground installationOther
Suitable for use as security alarm cableNo
Compatible with Grade3TV according to XP-C 90-483No
Number of sheath layers0
DuplexNo
With rip cordNo
Compatible with Grade2TV according to XP-C 90-483No
Nominal cross section conductor0.5mm²
Cable typeOther
Colour outer sheathBlack
Conductor materialOther
