Details
- •Low-voltage industrial components

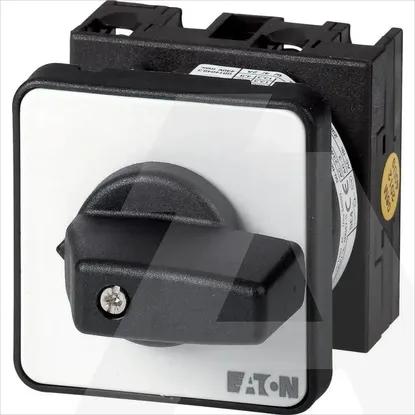

- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth95mm
Width48mm
Height48mm
Rated operation power at AC-3, 400 V5.5kW
Number of auxiliary contacts as normally open contact0
Number of poles0
Rated permanent current Iu20A
Number of auxiliary contacts as normally closed contact0
Version as maintenance-/service switchNo
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Number of switches1
InterlockableNo
Version as safety switchNo
Conditioned rated short-circuit current Iq6kA
Motor drive integratedNo
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
Version as main switchNo
Type of control elementShort thumb-grip
Degree of protection (IP), front sideIP65
Voltage release optionalNo
Motor drive optionalNo
Suitable for intermediate mountingNo
Rated short-time withstand current lcw0.32kA
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V5.5kW
Suitable for floor mountingNo
Suitable for distribution board installationNo
Colour control elementBlack
Max. rated operation voltage Ue AC690V
Suitable for front mounting 4-holeYes
Version as reversing switchNo
With pre-assembled cablingNo
Switching power at 400 V5.5kW
Rated permanent current at AC-21, 400 V20A
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V13.3A
