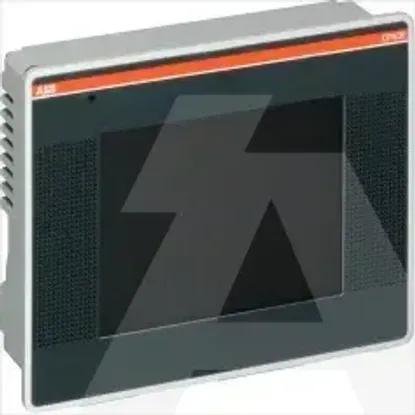

1SAP530100R0001 | CP630
Code: 1748561
ManufacturerABB
Catalog number1SAP530100R0001
TypeRecessed mounted monitor
CategoryRecessed mounted monitor
EAN code-
Details
- •Programmable logic controllers PLC
- •Recessed mounted monitor
- •1 KOM
- •ABB
Technical specifications
Suitable for safety functionsNo
Built-in depth51mm
With colour displayYes
Number of colours of the display64000
With touch screenYes
Operating temperature0 - 50°C
Number of function buttons-
Integrated keyboardNo
With HW-interface USBYes
With HW-interface video signal, analogueNo
With On Screen DisplayNo
Horizontal frequency- - undefinedkHz
Mouse-cursor control integratedNo
Wall mounting/direct mountingNo
Height of the front147mm
Rail mounting possibleNo
Width of the front187mm
Frame frequency- - undefinedkHz
With HW-interface PS2No
Rack-assembly possibleNo
With HW-interface digital video signalNo
Front built-in possibleNo
Type of displayTFT
Number of grey-scales/blue-scales of display-
Supply voltage DC18 - 30V
Supply voltage AC 60 Hz- - undefinedV
Supply voltage AC 50 Hz- - undefinedV
Screen diagonal5.7inch
Voltage type of supply voltageDC
Number of pixels, horizontal320
Number of pixels, vertical240
Degree of protection (IP), front sideIP66
