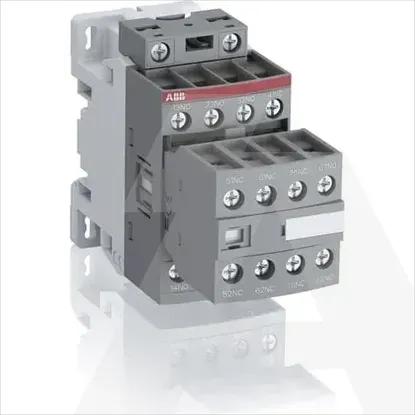

1SBH136001R2039 | NFZ33/11-20 12-20VDC
Code: 1748603
ManufacturerABB
Catalog number1SBH136001R2039
TypeNFZ33/11-20
CategoryContactor relay
EAN code3471523107809
Details
- •Low-voltage industrial components
- •Contactor relay
- •1 KOM
- •ABB
Technical specifications
Width45mm
Height86mm
Depth110.5mm
Mounting methodDIN-rail/screw
InterfaceNo
Suitable for manual operationNo
Number of auxiliary contacts as normally closed contact, delayed switching0
Rated operation current3A
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact, leading0
Rated control supply voltage Us at DC12 - 20V
Operating voltage at DC6 - 6V
Operating voltage at AC 50 Hz690 - 690V
Rated switch current-A
Manual operation possibleNo
With LED indicationNo
Operating voltage at AC 60 Hz690 - 690V
Rated control supply voltage Us at AC 50HZ100 - 250V
Rated control supply voltage Us at AC 60HZ100 - 250V
Connection type auxiliary circuitScrew connection
Number of auxiliary contacts as normally open contact4
Number of auxiliary contacts as normally closed contact4
Rated operation current Ie, 400 V3A
Voltage type for actuatingAC/DC
