Details
- •Low-voltage industrial components
- •DC-power supply
- •1 KOM
- •ABB
Technical specifications
Built-in width82mm
Modular versionNo
Power output480W
Height129.4mm
Type of electric connectionScrew connection
Depth136mm
Voltage type of supply voltageAC/DC
Width82mm
Output voltage stabilizedYes
Built-in height129.4mm
Suitable for safety functionsNo
Width in number of modular spacings-
Wall mounting possibleNo
Rail mounting possibleYes
Power consumption508VA
Direct mounting possibleNo
StabilizedYes
Degree of protection (IP)IP20
Max. output current 126A
Rated supply voltage at DC90 - 300V
Nominal value output voltage 124V
Nominal value output voltage 20V
Performance level according to EN ISO 13849-1None
Max. output current 30A
2nd secondary output voltage0 - 0V
1st secondary output voltage24 - 24V
Max. output current 20A
Rated supply voltage at AC 60 Hz85 - 264V
Rated supply voltage at AC 50 Hz85 - 264V
Nominal value output voltage 30V
Short-circuit-proofYes
3rd secondary output voltage0 - 0V
Secondary voltage adjustableNo
Degree of protection (NEMA)1
Nominal value output current 30A
SIL according to IEC 61508None
Nominal value output current 20A
Nominal value output current 120A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

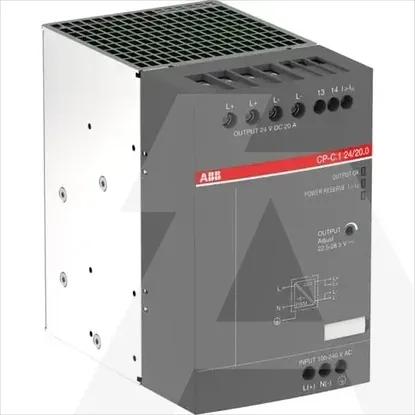

1SVR360763R1001 | CP-C.1 24/20.0
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- DC-power supply
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Built-in width
82mm
Modular version
Power output
480W
Height
129.4mm
Type of electric connection
Screw connection
Depth
136mm
Voltage type of supply voltage
AC/DC
Width
82mm
Output voltage stabilized
Built-in height
129.4mm
Suitable for safety functions
Width in number of modular spacings
-
Wall mounting possible
Rail mounting possible
Power consumption
508VA
Direct mounting possible
Stabilized
Degree of protection (IP)
IP20
Max. output current 1
26A
Rated supply voltage at DC
90 .. 300V
Nominal value output voltage 1
24V
Nominal value output voltage 2
0V
Performance level according to EN ISO 13849-1
None
Max. output current 3
0A
2nd secondary output voltage
0 .. 0V
1st secondary output voltage
24 .. 24V
Max. output current 2
0A
Rated supply voltage at AC 60 Hz
85 .. 264V
Rated supply voltage at AC 50 Hz
85 .. 264V
Nominal value output voltage 3
0V
Short-circuit-proof
3rd secondary output voltage
0 .. 0V
Secondary voltage adjustable
Degree of protection (NEMA)
1
Nominal value output current 3
0A
SIL according to IEC 61508
None
Nominal value output current 2
0A
Nominal value output current 1
20A
