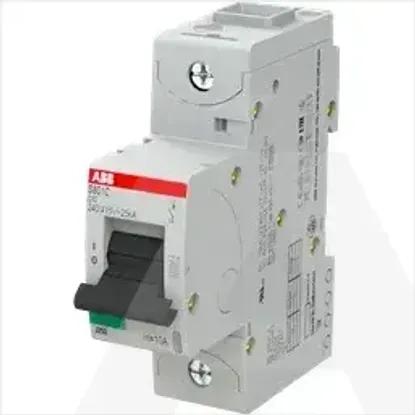

2CCS881001R0104 | S801C-C10
Code: 1749217
ManufacturerABB
Catalog number2CCS881001R0104
TypeS801C-C10
CategoryMiniature circuit breaker (MCB)
EAN code7612271212124
Details
- •MINIJATURNI PREKIDAC, 1P, 10A, C KRIVULJA, 25kA
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth82.5mm
Frequency50 - 60Hz
Rated insulation voltage Ui500V
Voltage typeAC/DC
Rated voltage440V
Power loss1.5W
Current limiting class3
Flush-mounted installationNo
Over voltage category3
Ambient temperature during operating-25 - 60°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Degree of protection (IP)IP20
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Width in number of modular spacings4
Pollution degree3
Connectable conductor cross section multi-wired0 - 70mm²
Additional equipment possibleYes
Explosion-proofNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Connectable conductor cross section solid-core0 - 50mm²
Rated impulse withstand voltage Uimp8kV
Rated current10A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
