Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicD
Voltage typeAC/DC
Current limiting class3
Rated voltage440V
Built-in depth82.5mm
Number of protected poles1
Over voltage category3
Degree of protection (IP)IP20
Rated insulation voltage Ui500V
Frequency50 - 60Hz
Explosion-proofNo
Width in number of modular spacings4
Power loss2W
Pollution degree3
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0 - 50mm²
Connectable conductor cross section multi-wired0 - 70mm²
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Rated current13A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

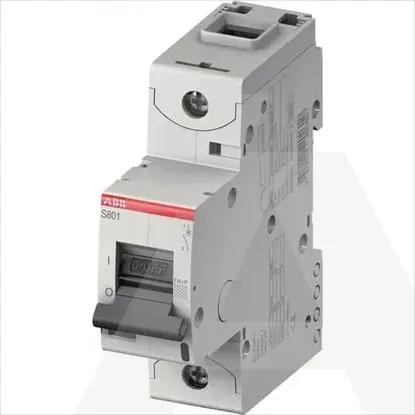

2CCS881001R0131 | S801C-D13
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Release characteristic
D
Voltage type
AC/DC
Current limiting class
3
Rated voltage
440V
Built-in depth
82.5mm
Number of protected poles
1
Over voltage category
3
Degree of protection (IP)
IP20
Rated insulation voltage Ui
500V
Frequency
50 .. 60Hz
Explosion-proof
Width in number of modular spacings
4
Power loss
2W
Pollution degree
3
Additional equipment possible
Ambient temperature during operating
-25 .. 60°C
Connectable conductor cross section solid-core
0 .. 50mm²
Connectable conductor cross section multi-wired
0 .. 70mm²
Flush-mounted installation
Concurrently switching neutral conductor
Suitable for flush-mounted installation
Rated current
13A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Rated impulse withstand voltage Uimp
8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Number of poles (total)
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
15kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
