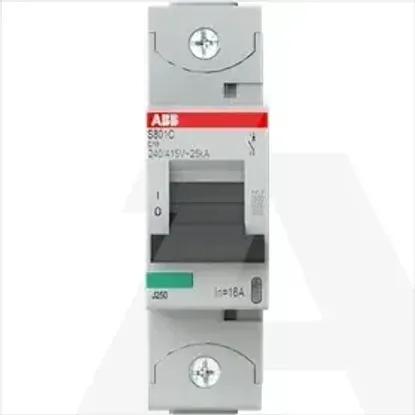

Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Built-in depth82.5mm
Voltage typeAC/DC
Over voltage category3
Suitable for flush-mounted installationNo
Width in number of modular spacings4
Pollution degree3
Current limiting class3
Connectable conductor cross section solid-core0 - 50mm²
Power loss3.1W
Rated voltage440V
Number of protected poles1
Concurrently switching neutral conductorNo
Rated insulation voltage Ui500V
Degree of protection (IP)IP20
Explosion-proofNo
Frequency50 - 60Hz
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Connectable conductor cross section multi-wired0 - 70mm²
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Rated current16A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
