Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated insulation voltage Ui500V
Over voltage category4
Release characteristicC
Pollution degree3
Power loss3W
Rated voltage440V
Rated current10A
Built-in depth82.5mm
Explosion-proofNo
Frequency50 - 60Hz
Width in number of modular spacings2
Voltage typeAC
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
Suitable for flush-mounted installationNo
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0 - 70mm²
Flush-mounted installationNo
Connectable conductor cross section solid-core0 - 50mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Number of protected poles2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Rated impulse withstand voltage Uimp8kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

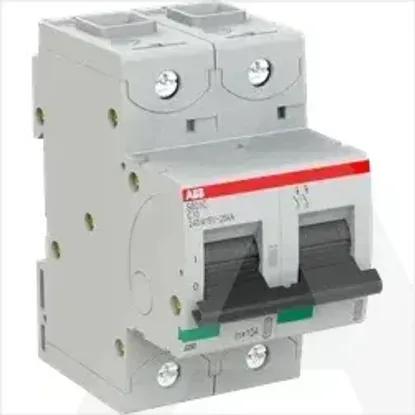

2CCS882001R0104 | S802C-C10
