Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth82.5mm
Frequency50 - 60Hz
Release characteristicB
Rated voltage440V
Voltage typeAC
Rated current10A
Over voltage category4
Rated insulation voltage Ui500V
Pollution degree3
Explosion-proofNo
Current limiting class3
Width in number of modular spacings2
Degree of protection (IP)IP20
Number of protected poles2
Suitable for flush-mounted installationNo
Rated impulse withstand voltage Uimp8kV
Power loss3W
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
Connectable conductor cross section multi-wired0 - 70mm²
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0 - 50mm²
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Ambient temperature during operating-25 - 60°C
Number of poles (total)2
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

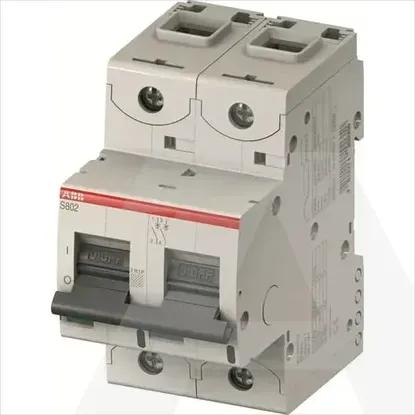

2CCS882001R0105 | S802C-B10
