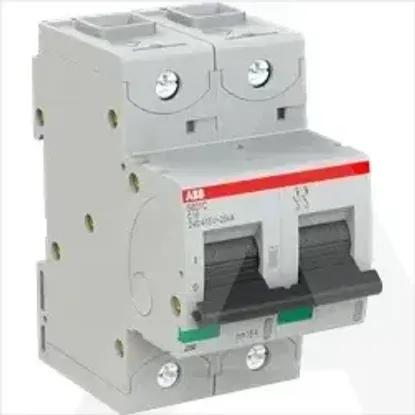

2CCS882001R0164 | S802C-C16
Code: 1749243
ManufacturerABB
Catalog number2CCS882001R0164
TypeS802C-C16
CategoryMiniature circuit breaker (MCB)
EAN code7612271212452
Details
- •MINIJATURNI PREKIDAC, 2P, 16A, C KRIVULJA, 25kA
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeAC
Built-in depth82.5mm
Rated insulation voltage Ui500V
Rated voltage440V
Frequency50 - 60Hz
Over voltage category4
Width in number of modular spacings2
Explosion-proofNo
Power loss6.2W
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Pollution degree3
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core0 - 50mm²
Ambient temperature during operating-25 - 60°C
Flush-mounted installationNo
Number of protected poles2
Current limiting class3
Connectable conductor cross section multi-wired0 - 70mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Additional equipment possibleYes
Rated impulse withstand voltage Uimp8kV
Rated current16A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
