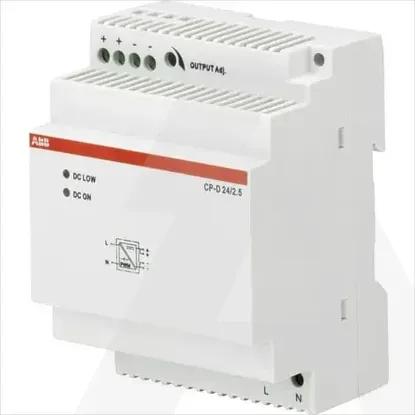

2CDG120037R0011 | CP-D24/2.5
Code: 1749299
Details
- •Low-voltage industrial components
- •DC-power supply
- •1 KOM
- •ABB
Technical specifications
Degree of protection (IP)IP20
Width71mm
Height91mm
Depth57.5mm
Width in number of modular spacings4
Type of electric connectionScrew connection
Degree of protection (NEMA)1
Built-in width71mm
Built-in height91mm
Modular versionYes
Performance level according to EN ISO 13849-1None
SIL according to IEC 61508None
Suitable for safety functionsNo
Voltage type of supply voltageAC
Rail mounting possibleYes
Short-circuit-proofNo
Power consumption70VA
Wall mounting possibleNo
Rated supply voltage at DC0 - 0V
Rated supply voltage at AC 50 Hz100 - 240V
Rated supply voltage at AC 60 Hz100 - 240V
Power output60W
StabilizedNo
Direct mounting possibleYes
Output voltage stabilizedYes
Secondary voltage adjustableNo
Max. output current 12.5A
1st secondary output voltage24 - 24V
Nominal value output current 12.5A
Nominal value output voltage 124V
2nd secondary output voltage0 - 0V
3rd secondary output voltage0 - 0V
Max. output current 2-A
Max. output current 3-A
Nominal value output voltage 224V
Nominal value output voltage 3-V
Nominal value output current 2-A
Nominal value output current 3-A
