Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of analogue outputs1
Number of HW-interfaces RS-4851
Number of HW-interfaces USB0
With optical interfaceNo
With control elementYes
Depth232mm
Number of digital inputs6
Number of HW-interfaces parallel0
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-2320
Number of digital outputs1
Number of analogue inputs3
Number of HW-interfaces serial TTY0
Height330mm
Supporting protocol for LONNo
Number of HW-interfaces RS-4220
Width180mm
Number of HW-interfaces other1
Supporting protocol for ModbusYes
Type of converterU converter
Supporting protocol for INTERBUS-SafetyNo
Mains voltage380 - 500V
Supporting protocol for TCP/IPNo
Supporting protocol for SUCONETNo
Number of interfaces PROFINET0
Supporting protocol for KNXNo
Supporting protocol for ASINo
Supporting protocol for other bus systemsYes
Supporting protocol for INTERBUSNo
Degree of protection (IP)IP20
4-quadrant operation possibleYes
With PC connectionYes
Supporting protocol for DeviceNetYes
Supporting protocol for PROFIBUSYes
Supporting protocol for Data-HighwayNo
Mains frequency50/60 Hz
Supporting protocol for CANYes
Application in domestic- and commercial area permittedNo
Integrated breaking resistanceNo
Number of phases output3
Application in industrial area permittedYes
Number of phases input3
Supporting protocol for SERCOSNo
Max. output frequency599Hz
Supporting protocol for AS-Interface Safety at WorkNo
Relative symmetric net frequency tolerance5%
Relative symmetric net voltage tolerance10%
Supporting protocol for SafetyBUS pNo
Max. output at quadratic load at rated output voltage11kW
Supporting protocol for PROFIsafeNo
Nominal output current I2N27.7A
Supporting protocol for PROFINET CBANo
Degree of protection (NEMA)1
Supporting protocol for Foundation FieldbusNo
Max. output voltage500V
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFINET IOYes
Supporting protocol for BACnetNo
Supporting protocol for DeviceNet SafetyNo
Max. output at linear load at rated output voltage11kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

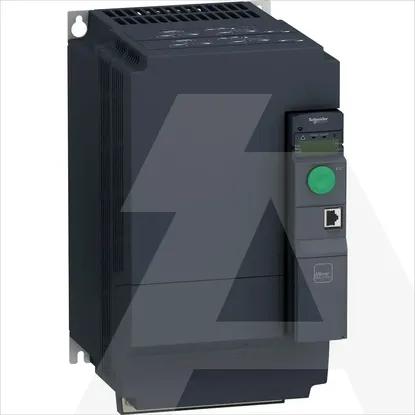

ATV320D11N4B | Frek.pret. 11kW-400V 3ph-ATV320 Book
