Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of analogue outputs1
Depth138mm
With control elementYes
Width72mm
Supporting protocol for LONNo
Number of HW-interfaces industrial Ethernet1
Number of digital outputs1
Number of analogue inputs3
Height143mm
Number of digital inputs6
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4851
Number of HW-interfaces other1
Number of HW-interfaces USB0
Number of HW-interfaces serial TTY0
Supporting protocol for SERCOSNo
Supporting protocol for PROFIBUSYes
Supporting protocol for SUCONETNo
Supporting protocol for INTERBUSNo
Supporting protocol for INTERBUS-SafetyNo
With optical interfaceNo
Degree of protection (IP)IP20
Supporting protocol for other bus systemsYes
Supporting protocol for Data-HighwayNo
Mains voltage200 - 240V
Supporting protocol for KNXNo
Supporting protocol for ModbusYes
Supporting protocol for DeviceNetYes
Mains frequency50/60 Hz
Supporting protocol for TCP/IPNo
With PC connectionYes
Supporting protocol for ASINo
Number of HW-interfaces parallel0
Type of converterU converter
4-quadrant operation possibleYes
Number of interfaces PROFINET0
Supporting protocol for CANYes
Supporting protocol for Foundation FieldbusNo
Number of phases input1
Application in domestic- and commercial area permittedNo
Integrated breaking resistanceNo
Supporting protocol for PROFINET IOYes
Relative symmetric net frequency tolerance5%
Supporting protocol for PROFIsafeNo
Max. output at linear load at rated output voltage0.37kW
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET CBANo
Supporting protocol for AS-Interface Safety at WorkNo
Number of phases output3
Supporting protocol for DeviceNet SafetyNo
Max. output at quadratic load at rated output voltage0.37kW
Relative symmetric net voltage tolerance10%
Supporting protocol for EtherNet/IPYes
Max. output frequency599Hz
Application in industrial area permittedYes
Degree of protection (NEMA)1
Supporting protocol for BACnetNo
Max. output voltage240V
Nominal output current I2N3.3A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

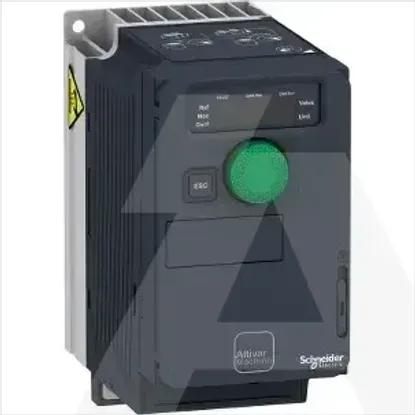

ATV320U04M2C | Frek.pret. 0.37kW-200V1ph-ATV320 Kompakt
