Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of digital inputs6
Width45mm
Depth245mm
Height325mm
With control elementYes
Supporting protocol for LONNo
Number of HW-interfaces RS-4220
Number of analogue outputs1
Number of analogue inputs3
With optical interfaceNo
Number of HW-interfaces parallel0
Number of HW-interfaces industrial Ethernet1
Supporting protocol for TCP/IPNo
Number of HW-interfaces other1
Number of HW-interfaces RS-4851
Supporting protocol for ASINo
Number of HW-interfaces RS-2320
Number of digital outputs1
Supporting protocol for other bus systemsYes
Supporting protocol for PROFIBUSYes
Supporting protocol for ModbusYes
Supporting protocol for CANYes
Supporting protocol for DeviceNetYes
Number of HW-interfaces USB0
Supporting protocol for SUCONETNo
Supporting protocol for Data-HighwayNo
Number of HW-interfaces serial TTY0
Degree of protection (IP)IP20
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
With PC connectionYes
Application in industrial area permittedYes
Supporting protocol for Foundation FieldbusNo
Number of phases output3
Number of interfaces PROFINET0
4-quadrant operation possibleYes
Max. output at quadratic load at rated output voltage0.55kW
Supporting protocol for PROFINET CBANo
Type of converterU converter
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for EtherNet/IPYes
Mains voltage380 - 500V
Integrated breaking resistanceNo
Supporting protocol for DeviceNet SafetyNo
Max. output at linear load at rated output voltage0.55kW
Max. output frequency599Hz
Application in domestic- and commercial area permittedNo
Relative symmetric net voltage tolerance10%
Supporting protocol for PROFIsafeNo
Mains frequency50/60 Hz
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET IOYes
Relative symmetric net frequency tolerance5%
Supporting protocol for SERCOSNo
Number of phases input3
Supporting protocol for SafetyBUS pNo
Nominal output current I2N1.9A
Max. output voltage500V
Supporting protocol for BACnetNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

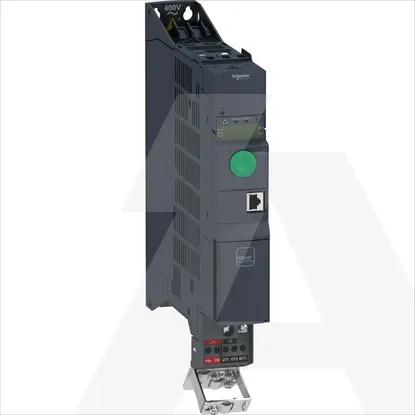

ATV320U06N4B | Frek.pret. 0.55kW-400V 3ph-ATV320 Book
