Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Height325mm
Number of digital outputs1
Width45mm
Number of analogue outputs1
Number of digital inputs6
Depth245mm
With control elementYes
Supporting protocol for LONNo
Number of analogue inputs3
Number of HW-interfaces RS-4851
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2320
Supporting protocol for TCP/IPNo
Number of HW-interfaces parallel0
Number of HW-interfaces other1
With optical interfaceNo
Supporting protocol for ASINo
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces USB0
Number of HW-interfaces serial TTY0
Supporting protocol for DeviceNetYes
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusYes
Supporting protocol for KNXNo
Supporting protocol for other bus systemsYes
Supporting protocol for PROFIBUSYes
Supporting protocol for SUCONETNo
With PC connectionYes
Degree of protection (IP)IP20
Supporting protocol for INTERBUSNo
Supporting protocol for SERCOSNo
Mains frequency50/60 Hz
Supporting protocol for INTERBUS-SafetyNo
Number of interfaces PROFINET0
Mains voltage200 - 240V
4-quadrant operation possibleYes
Supporting protocol for CANYes
Max. output frequency599Hz
Max. output at linear load at rated output voltage0.75kW
Number of phases output3
Application in domestic- and commercial area permittedNo
Type of converterU converter
Number of phases input1
Application in industrial area permittedYes
Integrated breaking resistanceNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET IOYes
Supporting protocol for SafetyBUS pNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for BACnetNo
Relative symmetric net voltage tolerance10%
Nominal output current I2N4.8A
Relative symmetric net frequency tolerance5%
Supporting protocol for PROFINET CBANo
Max. output voltage240V
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFIsafeNo
Max. output at quadratic load at rated output voltage0.75kW
Supporting protocol for Foundation FieldbusNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

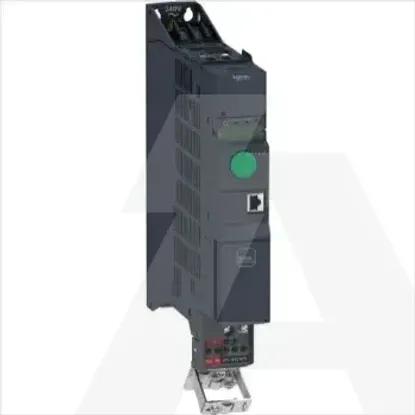

ATV320U07M2B | ATV320 0,75KW 200V 1PH Book Control Vari
