Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Width60mm
Number of digital outputs1
Depth245mm
Height325mm
With control elementYes
Number of analogue inputs3
Number of digital inputs6
Number of HW-interfaces parallel0
Number of HW-interfaces other1
Number of HW-interfaces RS-4220
Supporting protocol for LONNo
Number of analogue outputs1
Number of HW-interfaces USB0
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4851
With optical interfaceNo
Supporting protocol for ASINo
Supporting protocol for PROFIBUSYes
Supporting protocol for TCP/IPNo
Supporting protocol for CANYes
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetYes
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for ModbusYes
Supporting protocol for other bus systemsYes
Supporting protocol for Data-HighwayNo
Degree of protection (IP)IP20
Supporting protocol for SERCOSNo
With PC connectionYes
Number of phases output3
Number of phases input1
Mains frequency50/60 Hz
Supporting protocol for INTERBUS-SafetyNo
Number of interfaces PROFINET0
Type of converterU converter
Integrated breaking resistanceNo
Mains voltage200 - 240V
Application in industrial area permittedYes
Application in domestic- and commercial area permittedNo
4-quadrant operation possibleYes
Max. output at quadratic load at rated output voltage1.1kW
Supporting protocol for EtherNet/IPYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Max. output frequency599Hz
Supporting protocol for AS-Interface Safety at WorkNo
Relative symmetric net frequency tolerance5%
Relative symmetric net voltage tolerance10%
Max. output at linear load at rated output voltage1.1kW
Nominal output current I2N6.9A
Supporting protocol for BACnetNo
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFINET CBANo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Max. output voltage240V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

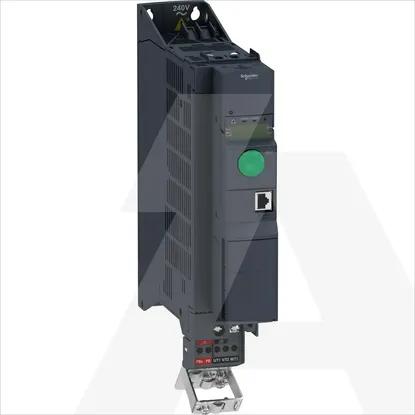

ATV320U11M2B | Frek.pret. 1.1kW-200V 1ph-ATV320 Book
