Aleta.hr

Details

  • •Low-voltage industrial components
  • •Frequency converter =< 1 kV
  • •1 KOM
  • •SCHNEIDER

Technical specifications

With control elementYes
Height325mm
Depth245mm
Width60mm
Number of analogue inputs3
Number of analogue outputs1
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-2320
Number of digital inputs6
Supporting protocol for LONNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4851
Number of HW-interfaces USB0
Number of HW-interfaces RS-4220
Number of digital outputs1
Supporting protocol for INTERBUSNo
Supporting protocol for TCP/IPNo
Number of HW-interfaces parallel0
With optical interfaceNo
Supporting protocol for CANYes
Number of HW-interfaces other1
Supporting protocol for PROFIBUSYes
Supporting protocol for ASINo
Supporting protocol for SUCONETNo
Supporting protocol for ModbusYes
Supporting protocol for other bus systemsYes
4-quadrant operation possibleYes
Supporting protocol for DeviceNetYes
Supporting protocol for Data-HighwayNo
Supporting protocol for KNXNo
Mains frequency50/60 Hz
With PC connectionYes
Supporting protocol for INTERBUS-SafetyNo
Application in industrial area permittedYes
Number of interfaces PROFINET0
Integrated breaking resistanceNo
Max. output frequency599Hz
Supporting protocol for SERCOSNo
Type of converterU converter
Application in domestic- and commercial area permittedNo
Relative symmetric net voltage tolerance10%
Max. output at quadratic load at rated output voltage4kW
Relative symmetric net frequency tolerance5%
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IOYes
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Max. output voltage500V
Supporting protocol for BACnetNo
Supporting protocol for AS-Interface Safety at WorkNo
Degree of protection (IP)IP20
Mains voltage380 - 500V
Number of phases output3
Number of phases input3
Max. output at linear load at rated output voltage4kW
Nominal output current I2N9.5A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

ATV320U40N4B | Frek.pret. 4kW-400V 3ph-ATV320 Book

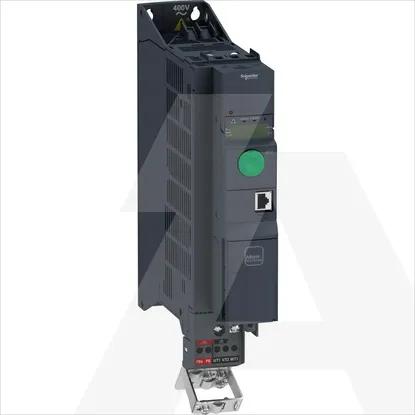

Main Product Image
