Details
- •Low-voltage switchgear and control gear (automation)
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Width140mm
Number of digital inputs6
With control elementYes
Number of digital outputs1
Depth158mm
Height184mm
Number of analogue inputs3
Number of analogue outputs1
Number of HW-interfaces USB0
Number of HW-interfaces RS-4220
Number of HW-interfaces other1
Number of HW-interfaces RS-2320
Supporting protocol for TCP/IPNo
Number of HW-interfaces industrial Ethernet1
Supporting protocol for PROFIBUSYes
Supporting protocol for CANYes
Supporting protocol for ModbusYes
Supporting protocol for ASINo
With PC connectionYes
Supporting protocol for KNXNo
Number of HW-interfaces RS-4851
Supporting protocol for other bus systemsYes
Degree of protection (IP)IP20
With optical interfaceNo
Number of HW-interfaces serial TTY0
Supporting protocol for DeviceNetYes
Supporting protocol for Data-HighwayNo
Supporting protocol for INTERBUSNo
Number of HW-interfaces parallel0
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SUCONETNo
Supporting protocol for LONNo
Mains voltage380 - 500V
Mains frequency50/60 Hz
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Relative symmetric net voltage tolerance10%
4-quadrant operation possibleYes
Supporting protocol for EtherNet/IPYes
Max. output at quadratic load at rated output voltage4kW
Integrated breaking resistanceNo
Application in industrial area permittedYes
Application in domestic- and commercial area permittedNo
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Type of converterU converter
Supporting protocol for PROFINET IOYes
Max. output frequency599Hz
Relative symmetric net frequency tolerance5%
Number of phases output3
Max. output at linear load at rated output voltage4kW
Number of interfaces PROFINET0
Number of phases input3
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Nominal output current I2N9.5A
Max. output voltage500V
Degree of protection (NEMA)1
Supporting protocol for BACnetNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

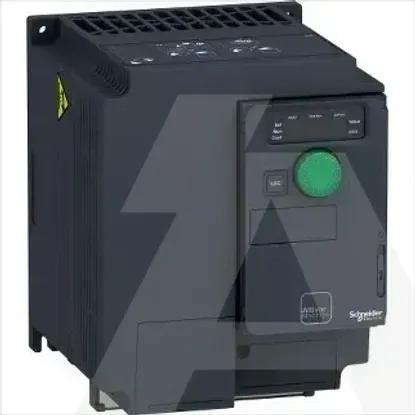

ATV320U40N4C | Frek.pret. 4kW-400V 3ph-ATV320 Kompakt
