Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Height385mm
With control elementNo
Width180mm
Number of digital outputs2
Depth249mm
Number of digital inputs5
Number of analogue inputs2
Supporting protocol for LONNo
Number of analogue outputs1
Number of HW-interfaces RS-2320
Number of HW-interfaces USB0
Supporting protocol for CANNo
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Number of HW-interfaces industrial Ethernet2
Supporting protocol for SUCONETNo
Supporting protocol for KNXNo
Supporting protocol for TCP/IPYes
Supporting protocol for PROFIBUSNo
Number of HW-interfaces other1
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusYes
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4851
With optical interfaceNo
Number of HW-interfaces parallel0
Supporting protocol for DeviceNetNo
Number of HW-interfaces serial TTY0
With PC connectionYes
Degree of protection (IP)IP20
Supporting protocol for INTERBUS-SafetyNo
Mains voltage380 - 480V
Supporting protocol for other bus systemsNo
Supporting protocol for SERCOSNo
Max. output frequency599Hz
Number of interfaces PROFINET0
Number of phases output3
Number of phases input3
Type of converterU converter
4-quadrant operation possibleYes
Application in industrial area permittedYes
Max. output at quadratic load at rated output voltage15kW
Application in domestic- and commercial area permittedNo
Max. output at linear load at rated output voltage15kW
Relative symmetric net voltage tolerance10%
Mains frequency50/60 Hz
Max. output voltage480V
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET IONo
Nominal output current I2N33.9A
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFIsafeNo
Supporting protocol for BACnetNo
Supporting protocol for PROFINET CBANo
Relative symmetric net frequency tolerance5%
Supporting protocol for EtherNet/IPYes
Supporting protocol for SafetyBUS pNo
Integrated breaking resistanceNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

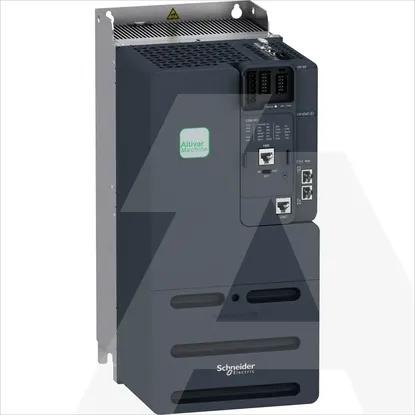

ATV340D11N4E | Frek. Pret. 11kW- 400V 3PH ATV340 Eth.
