Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Depth309mm
With control elementNo
Width271mm
Number of digital inputs8
Height908mm
Number of analogue inputs3
Number of digital outputs1
Supporting protocol for ASINo
Number of HW-interfaces USB0
With optical interfaceNo
Number of HW-interfaces other1
Number of HW-interfaces RS-2320
Supporting protocol for CANNo
Number of HW-interfaces RS-4220
Number of HW-interfaces parallel0
Number of analogue outputs2
Supporting protocol for PROFIBUSNo
Supporting protocol for LONNo
Supporting protocol for TCP/IPYes
Number of HW-interfaces RS-4851
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet2
Mains frequency50/60 Hz
Supporting protocol for INTERBUS-SafetyNo
With PC connectionYes
Degree of protection (IP)IP20
Supporting protocol for SUCONETNo
Supporting protocol for Data-HighwayNo
Mains voltage380 - 480V
Supporting protocol for SERCOSNo
Supporting protocol for ModbusYes
4-quadrant operation possibleYes
Number of interfaces PROFINET0
Supporting protocol for other bus systemsNo
Supporting protocol for INTERBUSNo
Supporting protocol for DeviceNetNo
Supporting protocol for KNXNo
Type of converterU converter
Number of phases output3
Relative symmetric net voltage tolerance10%
Max. output at quadratic load at rated output voltage55kW
Number of phases input3
Max. output at linear load at rated output voltage55kW
Application in domestic- and commercial area permittedNo
Max. output frequency500Hz
Integrated breaking resistanceNo
Application in industrial area permittedYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Relative symmetric net frequency tolerance5%
Supporting protocol for PROFINET IONo
Degree of protection (NEMA)1
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFIsafeNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Max. output voltage480V
Supporting protocol for BACnetNo
Nominal output current I2N97.2A
Supporting protocol for SafetyBUS pNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

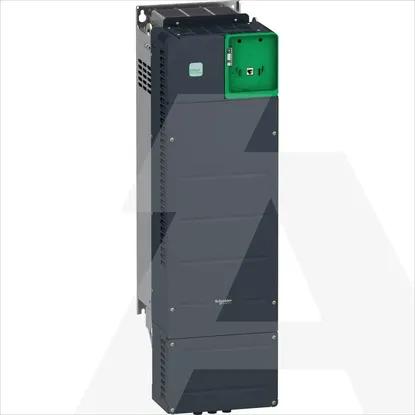

ATV340D45N4E | Frek. Pret. 45kW- 400V 3PH ATV340 Eth.
