Details

  • •Low-voltage industrial components
  • •Frequency converter =< 1 kV
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Width85mm
With control elementNo
Number of analogue inputs3
Number of HW-interfaces industrial Ethernet2
Number of digital inputs8
Depth232.5mm
Supporting protocol for LONNo
Number of HW-interfaces RS-4220
Number of digital outputs1
Number of analogue outputs2
Number of HW-interfaces RS-2320
Height270mm
Number of HW-interfaces RS-4851
With optical interfaceNo
Number of HW-interfaces other1
Supporting protocol for CANNo
Supporting protocol for ASINo
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Supporting protocol for PROFIBUSNo
Number of HW-interfaces parallel0
Supporting protocol for TCP/IPYes
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetNo
Supporting protocol for Data-HighwayNo
Supporting protocol for other bus systemsNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SERCOSNo
Supporting protocol for ModbusYes
With PC connectionYes
4-quadrant operation possibleYes
Mains frequency50/60 Hz
Number of interfaces PROFINET0
Integrated breaking resistanceNo
Supporting protocol for EtherNet/IPYes
Application in domestic- and commercial area permittedNo
Supporting protocol for PROFIsafeNo
Relative symmetric net voltage tolerance10%
Max. output at quadratic load at rated output voltage5.5kW
Supporting protocol for PROFINET IONo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for SafetyBUS pNo
Application in industrial area permittedYes
Max. output frequency599Hz
Supporting protocol for Foundation FieldbusNo
Relative symmetric net frequency tolerance5%
Type of converterU converter
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET CBANo
Max. output voltage480V
Supporting protocol for BACnetNo
Degree of protection (IP)IP20
Mains voltage380 - 480V
Number of phases output3
Number of phases input3
Max. output at linear load at rated output voltage5.5kW
Nominal output current I2N11.4A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

ATV340U40N4E | Frek. Pret. 4kW- 400V 3PH ATV340 Eth.

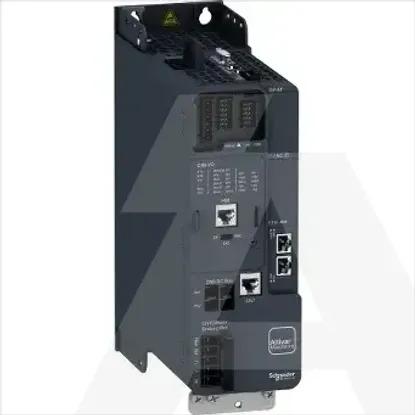

Main Product Image
