Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Height270mm
Width110mm
Depth234mm
With control elementNo
Number of digital inputs8
Number of analogue inputs3
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
With optical interfaceNo
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4851
Number of digital outputs1
Supporting protocol for LONNo
Number of analogue outputs2
Supporting protocol for ModbusYes
Number of HW-interfaces other1
Supporting protocol for CANYes
Supporting protocol for PROFIBUSYes
Number of HW-interfaces RS-2320
Supporting protocol for TCP/IPNo
Number of HW-interfaces parallel0
Supporting protocol for ASINo
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for Data-HighwayNo
Supporting protocol for other bus systemsYes
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetYes
With PC connectionYes
Number of phases input3
Mains voltage380 - 480V
Type of converterU converter
Number of interfaces PROFINET0
Max. output at linear load at rated output voltage7.5kW
Relative symmetric net frequency tolerance5%
Supporting protocol for SERCOSNo
Mains frequency50/60 Hz
Max. output frequency599Hz
Integrated breaking resistanceNo
Degree of protection (IP)IP20
Application in domestic- and commercial area permittedNo
Relative symmetric net voltage tolerance10%
Max. output at quadratic load at rated output voltage7.5kW
4-quadrant operation possibleYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for INTERBUS-SafetyNo
Number of phases output3
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFINET IOYes
Application in industrial area permittedYes
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for BACnetNo
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Max. output voltage480V
Nominal output current I2N22A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

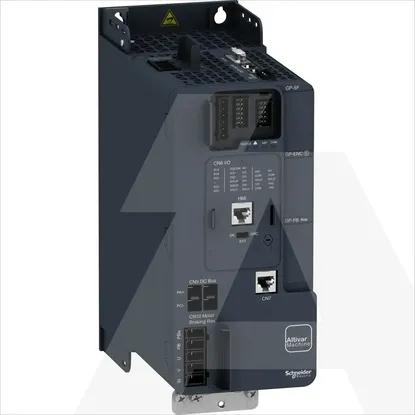

ATV340U75N4 | Frek. Pret. 7.5kW- 400V 3PH ATV340
