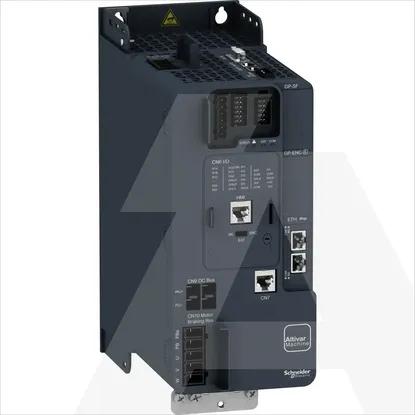

ATV340U75N4E | Frek. Pret. 7.5kW- 400V 3PH ATV340 Eth.
Code: 1757148
ManufacturerSchneider Electric
Catalog numberATV340U75N4E
TypeATV340U75N4E
CategoryFrequency converter =< 1 kV
EAN code3606480967047
Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •Minimum order quantity: 1 pcs
- •SCHNEIDER
Technical specifications
With control elementNo
Number of HW-interfaces RS-4851
Height270mm
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet2
Number of digital inputs8
Width110mm
Number of HW-interfaces parallel0
Number of digital outputs1
Number of analogue outputs2
Supporting protocol for LONNo
Number of HW-interfaces other1
Number of HW-interfaces USB0
Number of analogue inputs3
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2320
Supporting protocol for TCP/IPYes
With optical interfaceNo
Depth234mm
Supporting protocol for ASINo
Supporting protocol for PROFIBUSNo
Supporting protocol for CANNo
Supporting protocol for DeviceNetNo
Supporting protocol for SUCONETNo
4-quadrant operation possibleYes
Supporting protocol for INTERBUSNo
Number of interfaces PROFINET0
Integrated breaking resistanceNo
With PC connectionYes
Application in domestic- and commercial area permittedNo
Supporting protocol for SERCOSNo
Supporting protocol for other bus systemsNo
Supporting protocol for KNXNo
Mains frequency50/60 Hz
Application in industrial area permittedYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusYes
Type of converterU converter
Max. output frequency599Hz
Relative symmetric net voltage tolerance10%
Max. output at quadratic load at rated output voltage11kW
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for BACnetNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFINET IONo
Relative symmetric net frequency tolerance5%
Supporting protocol for DeviceNet SafetyNo
Max. output voltage480V
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Degree of protection (IP)IP20
Mains voltage380 - 480V
Number of phases output3
Number of phases input3
Max. output at linear load at rated output voltage11kW
Nominal output current I2N22A
