Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of digital inputs6
Width400mm
Number of analogue outputs2
Depth605mm
With control elementYes
Number of analogue inputs3
Supporting protocol for LONNo
Height2150mm
Number of digital outputs0
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4851
Number of HW-interfaces RS-2320
With optical interfaceNo
Supporting protocol for other bus systemsNo
Supporting protocol for ModbusYes
Number of HW-interfaces USB0
Supporting protocol for Data-HighwayNo
Degree of protection (IP)IP21
Number of HW-interfaces parallel0
Supporting protocol for ASINo
Supporting protocol for SUCONETNo
Mains voltage380 - 440V
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Number of HW-interfaces serial TTY0
Supporting protocol for DeviceNetYes
With PC connectionNo
Supporting protocol for CANNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SERCOSNo
4-quadrant operation possibleYes
Type of converterU converter
Mains frequency50/60 Hz
Number of interfaces PROFINET0
Number of HW-interfaces other0
Supporting protocol for TCP/IPYes
Supporting protocol for PROFIBUSYes
Number of phases input3
Number of phases output3
Supporting protocol for Foundation FieldbusNo
Max. output voltage440V
Max. output at linear load at rated output voltage132kW
Application in domestic- and commercial area permittedYes
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET CBANo
Application in industrial area permittedYes
Nominal output current I2N211A
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for BACnetNo
Supporting protocol for SafetyBUS pNo
Relative symmetric net voltage tolerance10%
Max. output at quadratic load at rated output voltage132kW
Supporting protocol for PROFINET IOYes
Relative symmetric net frequency tolerance5%
Max. output frequency500Hz
Integrated breaking resistanceNo
Supporting protocol for PROFIsafeNo
Supporting protocol for EtherNet/IPYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

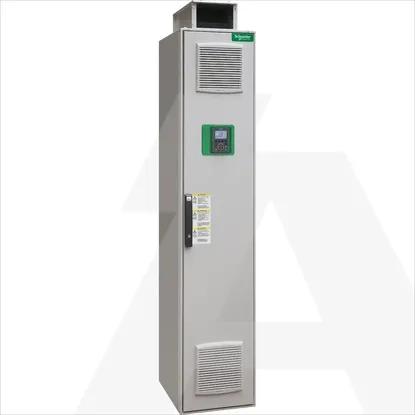

ATV630C13N4F | Frek. Pret. 132 KW -IP21 u Ormaru
